Industrial RO Systems

Exclusive CXL Industrial RO’s for Houses, Banks, Hotels, Schools, Colleges, Restaurants and Industries start from 250 Ltr/Hour – 50000 Ltr/Hour.

OVERVIEW

CXL designs and builds Industrial Reverse Osmosis systems (RO Systems) ranging in size from 100 LPH to 50000 LPH that can remove up to 99.5% of dissolved salts and virtually all colloidal and suspended matter from the most challenging feed water including municipal, brackish, and sea water applications. RO units produce a high quality water yield at a low cost compared to other purification processes.

Our Industrial Reverse Osmosis systems are custom designed specifically for your water treatment needs by an experienced team of application, mechanical and chemical engineers. CXL builds the RO system using only high quality components that will provide reliable long-term operation. They arrive at your site hydrostatically tested and ready to produce water with complete documentation and operator training. We also provide the pretreatment equipment and chemistry required to ensure optimal performance and life span of your RO membranes. You can feel confident knowing that we have a full service support team available 24/7 to assist with any emergencies.

RO CXL HC 250

  • Body – Fully S S Skid
  • Fully Automatic
  • All function display on screen
  • High Pressure Pump – 1 Pcs
  • Raw Water Pump – 1 Pcs
  • Membrane Housing 40 x 40 – 1 Pcs
  • Membrane 40 x 40 – 1 Pcs
  • Low Pressure Switch – 1 Pcs
  • High Pressure Switch – 1 Pcs
  • Big Blue Bag filter – 1 Pcs
  • Floaty – 1 Pcs
  • Flow Meter – 2 Pcs
  • Panel fully Automatic – 1 Pcs
  • Pressure Guage – 2 Pcs
  • Solenoid Valve – 2 Pcs
  • All Pipe Lines are UPVC
  • Packed with wooden Cartoon easy to transport

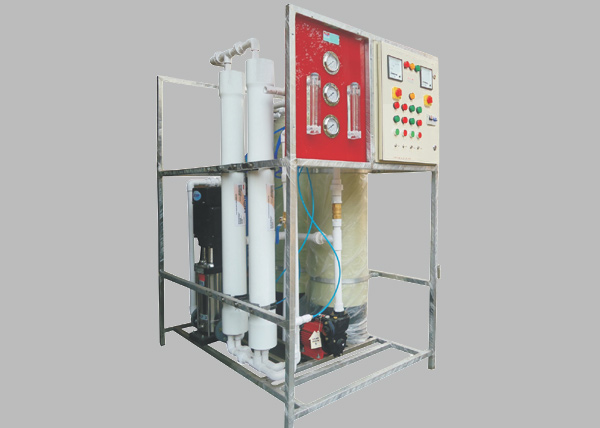

RO CXL HC 500

  • Body – Fully S S Skid
  • Fully Automatic
  • All function display on screen
  • High Pressure Pump – 1 Pcs
  • Raw Water Pump – 1 Pcs
  • Membrane Housing 40 x 40 – 2 Pcs
  • Membrane 40 x 40 – 2 Pcs
  • Low Pressure Switch – 1 Pcs
  • High Pressure Switch – 1 Pcs
  • Big Blue Bag filter – 1 Pcs
  • Floaty – 1 Pcs
  • Flow Meter – 2 Pcs
  • Panel fully Automatic – 1 Pcs
  • Pressure Guage – 2 Pcs
  • Solenoid Valve – 2 Pcs
  • All Pipe Lines are UPVC
  • Packed with wooden Cartoon easy to transport

RO CXL HC 1000

  • Body – Fully S S Skid
  • Fully Automatic
  • All function display on screen
  • High Pressure Pump – 1 Pcs
  • Raw Water Pump – 1 Pcs
  • Low pressure switch and high pressure switch
  • Membrane Housing 40 x 40 – 4 Pcs
  • Membrane 40 x 40- 4 Pcs
  • Low Pressure Switch – 1 Pcs
  • High Pressure Switch – 1 Pcs
  • Big Blue Bag filter – 1 Pcs
  • Floaty – 1 Pcs
  • Flow Meter – 2 Pcs
  • Panel fully Automatic – 1 Pcs
  • Pressure Guage – 2 Pcs
  • Solenoid Valve – 2 Pcs
  • All Pipe Lines are UPVC
  • Packed with wooden Cartoon easy to transport

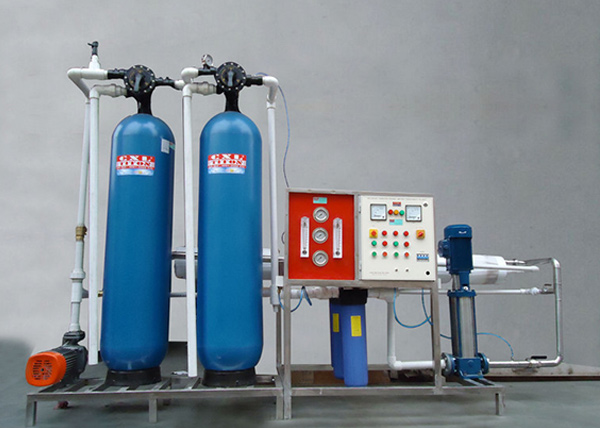

RO CXL HC 2000

  • Body – Fully S S Skid
  • Fully Automatic
  • All function display on screen
  • High Pressure Pump – 1 Pcs
  • Raw Water Pump – 1 Pcs
  • Low pressure switch and high pressure switch
  • Membrane Housing 80 x 80 – 1 Pcs
  • Membrane 40 x 80 – 2 Pcs
  • Low Pressure Switch – 1 Pcs
  • High Pressure Switch – 1 Pcs
  • Big Blue Bag filter – 2 Pcs
  • Floaty – 1 Pcs
  • Flow Meter – 2 Pcs
  • Panel fully Automatic – 1 Pcs
  • Pressure Guage – 2 Pcs
  • Solenoid Valve – 2 Pcs
  • All Pipe Lines are UPVC
  • Packed with wooden Cartoon easy to transport

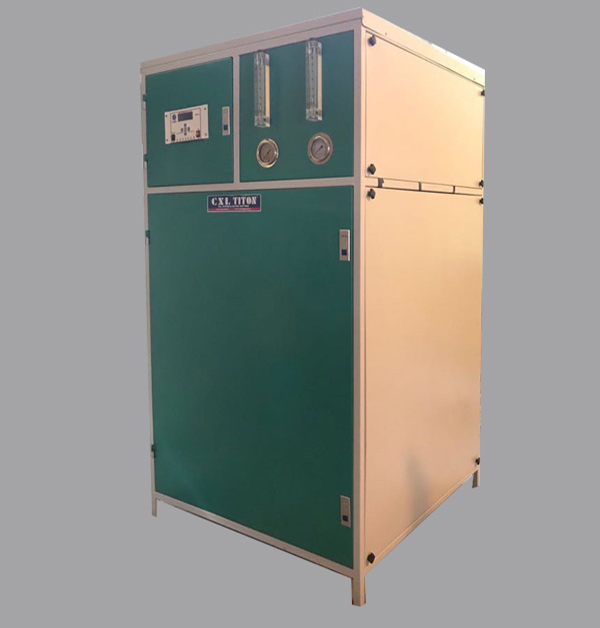

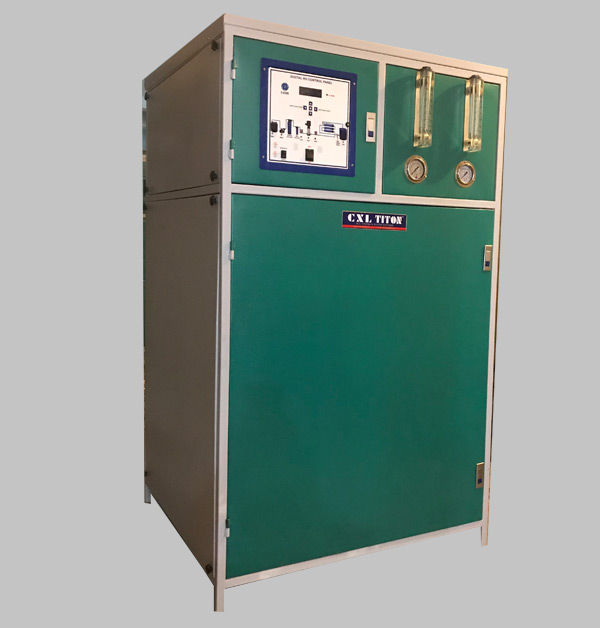

COMPACT RO SYSTEM

RO CXL HC 250 Ltr

  • Body – Compact fully covered with lock slik & elegant
  • Fully Automatic
  • All function display on screen
  • Size: Height 5’3″ Ft, Square 3 x 3 Ft
  • High Pressure Pump – 1 Pcs
  • Raw Water Pump – 1 Pcs
  • Membrane Housing 40 x 40 – 1 Pcs
  • Membrane 40 x 40 – 1 Pcs
  • Low Pressure Switch – 1 Pcs
  • Floaty – 1 Pcs
  • Flow Meter – 2 Pcs
  • Panel fully Automatic – 1 Pcs
  • Solenoid Valve – 2 Pcs
  • All Pipe Lines are UPVC
  • Packed with wooden Cartoon easy to transport
  • Auto flushing facility to protect membrane life

RO CXL HC 500 Ltr

  • Body – Compact fully covered with lock slik & elegant
  • Fully Automatic
  • All function display on screen
  • Size: Height 5’3″ Ft, Square 3 x 3 Ft
  • High Pressure Pump – 1 Pcs
  • Raw Water Pump – 1 Pcs
  • Membrane Housing 40 x 40 – 2 Pcs
  • Membrane 40 x 40 – 2 Pcs
  • Low Pressure Switch – 1 Pcs
  • High Pressure Switch – 1 Pcs
  • Big Blue Bag filter – 1 Pcs
  • Floaty – 1 Pcs
  • Flow Meter – 2 Pcs
  • Pressure Guage – 2 Pcs
  • Solenoid Valve – 2 Pcs
  • All Pipe Lines are UPVC
  • Packed with wooden Cartoon easy to transport
  • Auto flushing facility to protect membrane life

RO CXL HC 1000 Ltr

  • Body – Compact fully covered with lock slik & elegant
  • Fully Automatic
  • All function display on screen
  • Size: Height 5’3″ Ft, Square 3.6 x 3.6 Ft
  • High Pressure Pump – 1 Pcs
  • Raw Water Pump – 1 Pcs
  • Membrane Housing 40 x 40 – 4 Pcs
  • Membrane 40 x 40 – 4 Pcs
  • High Pressure Switch – 1 Pcs
  • Floaty – 1 Pcs
  • Flow Meter – 2 Pcs
  • Panel fully Automatic – 1 Pcs
  • Solenoid Valve – 2 Pcs
  • All Pipe Lines are UPVC
  • Packed with wooden Cartoon easy to transport
  • Auto flushing facility to protect membrane life

TECHNICAL SPECIFICATIONS

  • Specifications Set 1

    PRESSURE SAND FILTER / ACTIVATED CARBON

    • Quantity : One
    • Type : Vertical Pressure Vessel
    • Size : 16” x 65”(DxH)
    • Vessel Make : Pentair / Waterlife / Aventura
    • Filter Media : Quartz Sand, Cores Silex- 900
    • Make : Initiative
    • Multi Port Valve : Size 1” Top Mounted
    • Service Cycle : Pressure Drop > 0.8 kg/cm2
    • Backwash Duration : 15-20 Mins
    • Vessel MOC : F.R.P

    ANTISCALENT DOSING SYSTEM

    • Quantity : One
    • Pump Capacity : 0 – 5 LPH
    • Make : e – Dose
    • Operating Pressure : 1.5 kg/cm2
    • HDPE TANK SIZE : 200L
    • USE : To ensure non-adherence of scalecausing salts on the membrane surface by adhering to the crystals

    RAW WATER TRANSFER PUMP

    • Quantity : One
    • Make : Kirloskar / Crompton
    • Power : 2 HP
    • Capacity : 4500 LPH
    • Discharge Pressure : 4m.cu/hr 4.5Kg / cm2
    • Purpose : To transfer the raw water at required pressure to pressure sand filter
  • Specifications Set 2

    MICRON CARTILAZE FILTER

    • Quantity : One
    • Type : Replaceable Cartridge
    • Cartilaze MOC : Spun/Thread
    • Housing MOC : P.P.
    • Micron Rating : 5 Micron
    • Size of Cartilaze : 4” x 20” (w x l)
    • Flow Rate : 4000LPH
    • Operating Pressure : 1m3/hr kg/cm2
    • Frequency of Change : 3 Months
    • Use : To protect the high pressure
      pump & membrane
      from suspended particles.

    HIGH PRESSURE PUMP

    • Quantity : One
    • Make : CNP / CROMPTON / SHAKTI
    • Power : 3 HP /1.100Kw
    • Type : Vertical, multistage, centrifugal
    • Type of Drive : III Phase/I Phase, 50 Hz.,
      415/220Volts
    • M.O.C. : S.S.
    • Discharge Pressure. : 12Kg/cm3 /1m3/hr
    • Use : To transfer pre-treated
      water from required

    RO MODULE/ HOUSING

    • Item : R.O.Module with FRP Pressure tubes & amp; R.O.Membrane
    • Type : Thin Film composite Polyamide Spirally Wounded
    • Membrane MOC : Polyamide
    • Operating Pressure : 10 kg/cm2
    • Membrane Size : 8” x 40” (W x L)
    • Membrane Qty : Six
    • Housing MOC Qty : FRP/80”x8”/250Psi 3no.
    • Element Capacity Qty : Two 1000LPH
    • Use : To reduce Dissolved salts present in water.

Call us today 9717067722 for more information on how our products can deliver pure water to your home.
